Base interface for providing discontinuity geometry information for spatial indices. More...
#include <gmDiscontinuitySet.h>

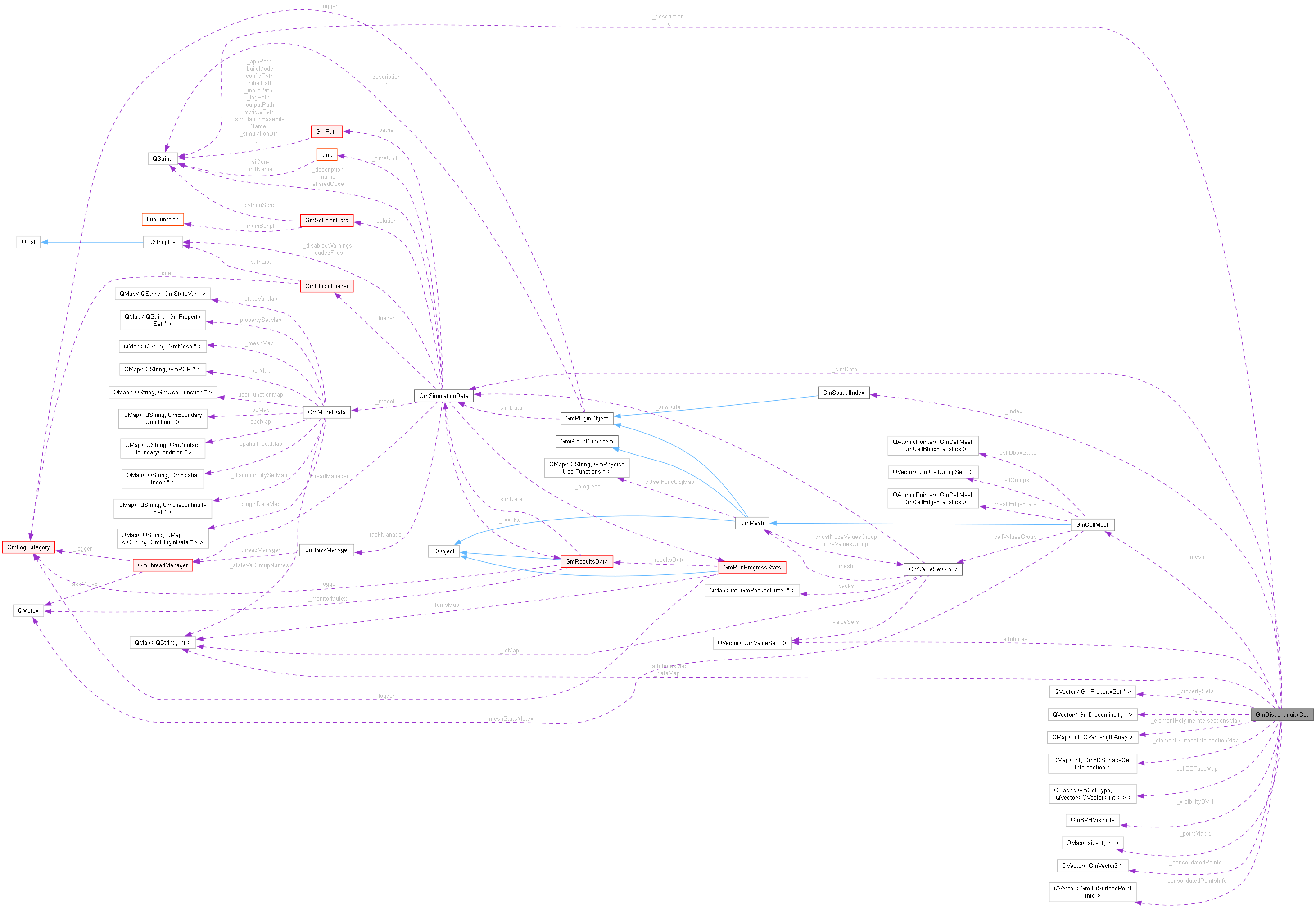

Public Types | |
| enum | DiscontinuityType { GM_DISC_POLYLINE , GM_DISC_TRISURFACE , GM_DISC_EDGELIST , GM_DISC_FACELIST , GM_DISC_UNDEFINED } |
| Discontinuity type (defining how the disc. geometry is defined) More... | |
| using | SegmentCell2DIntersectionList = QVarLengthArray<GmCompact2DSegmentCellIntersection*, 1> |
| Type for storing the set of 2D polyline-element intersections We use a QVarLengthArray since it has a smaller memory footprint than QVector If this type is changed (even if the pre alloc size of 1 is changed), please update GmDiscontinuitySet::usedElementMapMemory() accordingly. | |
Public Member Functions | |
| GmDiscontinuitySet (GmSimulationData *simData, QString id, QString description, GmCellMesh *mesh, GmSpatialIndex *index, bool addElements, bool addGhostNodes, bool extraDofs, double snapTol, double repelTol, double repelDistance, double parallelCosThreshold, bool noInternalNodes, bool internalIntersections, bool discardOriginalGeometry, bool extendGeometry, bool visibilityOnly) | |
| ~GmDiscontinuitySet () | |
| Destructor. | |
| QString | id () const |
| Returns the discontinuity set name. | |
| QString | description () const |
| Returns the discontinuity set description. | |
| DiscontinuityType | type () const |
| Returns the discontinuity geometry definition type. | |
| GmCellMesh * | mesh () const |
| Returns the mesh that this discontinuity set is tied to. | |
| GmSpatialIndex * | spatialIndex () const |
| Returns the mesh spatial index that this discontinuity set is tied to. | |
| bool | autoAddElements () const |
| Returns true if the dicontinuity-cell intersections are added as new elements to the mesh. | |
| bool | autoAddGhostNodes () const |
| Returns true if the dicontinuity-cell intersections are added as ghost nodes to the mesh. | |
| bool | extraDofsInAddedElements () const |
| Returns true if added interface elements for type() == EDGELIST or FACELIST should have extra dof nodes. | |
| double | snapTolerance () const |
| Returns the percentual tolerance used for snapping intersection points to nodes, edges or faces. | |
| double | repelTolerance () const |
| Returns the percentual tolerance used for repelling intersection points from nodes. | |
| double | repelDistance () const |
| Returns the percentual distance used for repelling intersection points from nodes. | |
| bool | noInternalNodes () const |
| Return true if internal intersections between segments are "broken". | |
| bool | internalIntersections () const |
| bool | discardOriginalGeometry () const |
| Returns true if the original intersection geometry data will be discarded after intersection handling. | |
| bool | extendedOriginalGeometry () const |
| Returns true if the original geometry was extended. | |
| bool | visibilityOnly () const |
| Returns true if this discSet is for visibilityOnly (no mesh, index or intersections) | |
| int | numDiscontinuities () const |
| Returns the number of discontinuities (lines) stored in the object. | |
| const QVector< GmDiscontinuity * > & | discontinuities () const |
| Returns the stored list of discontinuities. | |
| int | startAddedNodeIndex () const |
| int | discontinuityIndex (QString id) const |
| Given a discontinuity id, finds its index in the set. Returns -1 if not found. | |
| GmDiscontinuity * | discontinuity (int index) |
| Returns the given discontinuity. Index shoulde be between 0 and numDiscontinuities() - 1. | |
| const GmDiscontinuity * | discontinuity (int index) const |
| Returns the given discontinuity as a const object. Index shoulde be between 0 and numDiscontinuities() - 1. | |
| int | dimension () const |
| bool | intersects (const GmCell *c, bool def) const |
| QStringList | attributeIds () const |
| Returns a list with the id names for every attribute associated with the discontinuity set. No special order is enforced. | |
| GmValueInfo * | attributeInfo (QString id) const |
| Returns the metadata describing the discontinuity attribute named id If the id does not refer to a known attribute, returns NULL. | |
| GmDiscontinuityAccessor * | attributeAccessor (QString id, Unit desiredUnit, const GmLogCategory &logger) const |
| Creates an accessor object for the discontinuity attribute named id. | |
| GmDiscontinuityAccessor * | attributeAccessor (QString id, int snum, bool locked, Unit desiredUnit, const GmLogCategory &logger) const |
| Overloads attributeAccessor(QString, Unit, ...) to return an accessor for the requested previous state of a value. | |
| int | numAttributeStates (QString id) const |
| Returns the number of existing states for the requested id or -1 if the id doesn't exists. | |
| int | numPropertySets () const |
| Returns the number of property sets attached to this discontinuity set. | |
| const QVector< GmPropertySet * > & | propertySets () const |
| Returns a reference to the list of property sets associated to this set. | |
| int | propertySetIndex (QString id) const |
| GmValueInfo * | propertyInfo (QString id) const |
| Returns the metadata of the property named by id. | |
| GmDiscontinuityAccessor * | propertyAccessor (QString id, Unit desiredUnit, const GmLogCategory &logger) const |
| Returns an accessor object for the property named by id. | |
| bool | buildIntersectionMaps (const GmLogCategory &logger) |
| Builds the maps with element discontinuity segment intersections. | |
| const SegmentCell2DIntersectionList & | cell2DPolylineIntersections (const GmCell *c) const |
| Returns the set of 2D polyline - element intersections for cell c or an empty array if there is no intersection. | |
| GmSegmentCell2DIntersectionCoordAccessor * | cell2DPolylineCoordAccessor (Unit desiredUnit, const GmLogCategory &logger) const |
| Returns a "light" accessor that can be used to retrieve segment x cell intersection coordinate data in a different unit than the original mesh coordinate unit. As any accessor, the returned object should be properly disposed (deleted) by the caller. Returns NULL if the deired unit is incompatible with the mesh unit. | |
| const Gm3DSurfaceCellIntersection & | cell3DSurfaceIntersections (const GmCell *c) const |
| Returns the set of 3D triangles - element intersections for cell c or an empty object if there is no intersection. | |
| GmCell3DIntersectionCoordAccessor * | cell3DSurfaceCoordAccessor (Unit desiredUnit, const GmLogCategory &logger) const |
| const QMap< int, Gm3DSurfaceCellIntersection > | cell3DSurfaceIntersectionsMap () const |
| bool | loadFromDumpFile (QString dumpFile, GmSimulationData *data, const GmLogCategory &logger) |
| bool | loadFromHdf5File (GmHdf5ModelReader *reader, int dsIndex, const GmLogCategory &logger) |
| Loads discontinuity geometry information from the given Hdf5 file. The info pointer should correspond to the mesh discontinuity set information read using the given reader and the dsIndex should correspond to the current discontinuity set object. | |
| bool | loadFromTableAttrib (LuaTable &attrib, const GmLogCategory &logger, QVector< GmValueSet * > &outAttrib, int expectedSize=0) |
| bool | loadFromTableProp (LuaTable &prop, const QMap< QString, GmPropertySet * > &propMap, const GmLogCategory &logger, QVector< GmPropertySet * > &outProp) |
| bool | loadFromTableDisc (LuaTable &disc, const QVector< QSharedPointer< GmValueAccessor > > &attAcc, int type, const GmLogCategory &logger) |
| bool | setAttributes (const QVector< GmValueSet * > &attrib) |
| Setup discontinuity attributes/properties (1) only succeeds for empty discontinuitySet (2) takes pointers ownership if succeeds. | |
| bool | setProperties (const QVector< GmPropertySet * > &prop) |
| GmDiscontinuity * | addDiscontinuity (QString id, DiscontinuityType dType, int *indexes, int ni, double *points, int np, const QVector< int > &propIndex, int cellGroupId=-1) |
| Add a new discontinuity (1) only succeeds when intersections were not computed yet (2) takes pointers ownership if succeeds. | |
| void | printParameters (const GmLogCategory &logger, GmLogLevel level) const |
| Prints discontinuity set basic information to the specified logger/level. | |
| void | print (const GmLogCategory &logger, GmLogLevel level) const |
| Prints discontinuity set FULL information to the specified logger/level. | |
| size_t | printMemoryStatistics (const GmLogCategory &logger, GmLogLevel level) const |
| Prints memory usage for this discontinuity set to the given logger. Returns the used memory as reported by usedMemory() | |
| size_t | usedMemory () const |
| Returns an estimative of the memory used by the discontinuity set in bytes. | |
| bool | checkVisibility (const double *src, const double *dst, bool inclusive, double eps=3e-5) const |
| int | getNumberOfDiscontinuities (const GmCell *c) const |
| Returns the number of discontinuities that intersect a given element. | |
| int | getNumberOfDiscontinuityElements (const GmCell *c) const |
| Returns the number of discontinuity elements (bar (2D)/triangle (3D)) that intersect a given element. | |
| int | getIdDiscontinuityElementInMesh (const GmCell *c, int k) const |
| Return the id of the discontinuity element (bar (2D)/triangle (3D)) k inside the given cell in the mesh. | |
| int | getLocalIdDiscontinuityElement (const GmCell *c, int k) const |
| Return the id of the discontinuity element (bar (2D)/triangle (3D)) k locally in the given cell. | |
| void | fillDiscontinuityNodesGlobalToLocalMap (const GmCell *c, QMap< int, int > &globalToLocal) const |
| Fill the map with the global to local ids of the discontinuity elements nodes. | |
| void | fillDiscontinuityElementDofVector (int idMesh, const QMap< int, int > &dNodesGlobalToLocal, QVector< int > &dof) const |
| Fill the vector dof with the global ids of the nodes of the discontinuity element k inside the given cell in the mesh. | |
| void | getDiscontinuityGeometry (const GmCell *e, int id, GmVector &Xref, GmMatrix &mn) const |
| Get the discontinuity geometric properties. | |
| void | getPolylineDiscontinuityGeometry (const GmCell *e, int id, GmVector &Xref, GmMatrix &mn) const |
| Get the discontinuity geometric properties of a polyline discontinuity. | |
| void | getTrisurfDiscontinuityGeometry (const GmCell *e, int id, GmVector &Xref, GmMatrix &mn) const |
| Get the discontinuity geometric properties of a polyline discontinuity. | |
| const QVector< GmVector3 > & | consolidated3DPoints () const |
| const QVector< Gm3DSurfacePointInfo > & | consolidated3DPointsInfo () const |
Static Public Member Functions | |
| static GmDiscontinuitySet * | loadFromTable (LuaTable &tab, GmSimulationData *data, int type, const GmLogCategory &logger) |
| Loads a discontinuity set object full definition from a Lua table. | |
| static DiscontinuityType | getTypeFromTable (LuaTable &data) |
| static QString | getTableFieldFromType (DiscontinuityType type) |
| static QString | discontinuityTypeToStr (DiscontinuityType type) |
| Returns a string representing the discontinuity geometric representation type. | |
| static int | strToDiscontinuityType (QString str) |
| Returns the DiscontinuityType from the provided string or -1 if the type is unknown. | |
| static double | heavisideFunction (const GmVector &X, const GmVector &Xref, const GmVector &nd) |
| Compute the heaviside function associated with a discontinuity given a reference point and its normal. | |
Private Member Functions | |
| GmDiscontinuitySet (QString id, QString description, DiscontinuityType type, GmCellMesh *mesh, GmSpatialIndex *index, bool addElements, bool addGhostNodes, bool extraDofs, double snapTol, double repelTol, double repelDistance, double parallelCosThreshold, bool noInternalNodes, bool internalIntersections, bool discardOriginalGeometry, bool extendGeometry, bool visibilityOnly, GmSimulationData *simData) | |
| Private constructor for use by loadFromTable. | |
| bool | addIntersectionsToMesh (const GmLogCategory &logger) |
| bool | add2DSegmentCellIntersectionsToMesh (const GmLogCategory &logger) |
| Add 2D mesh polyline intersections as new bar elements to the mesh. | |
| bool | add3DTriangleCellIntersectionsToMesh (const GmLogCategory &logger) |
| Add 3D triangle surface intersections as new tri3 elements to the mesh. | |
| bool | addGhostNodeIntersectionsToMesh (const GmLogCategory &logger) |
| bool | break2DPolylinesAtIntersections (const GmLogCategory &logger) |
| Break discontinuity intersection "bars" when they intersect with other discontinuities. | |
| bool | extendGeometry (const GmLogCategory &logger) |
| size_t | encDiscPoint (int discId, int pointId) const |
| int | push3DPoint (int discId, int pointId, GmIntersectionPointType ptype, const GmVector3 &point) |
| int | get3DPoint (int discId, int pointId) const |
| void | computeAxis (GmVector3 &normal, GmVector3 &tan) const |
| void | removeUnused3DPoints () |
| bool | consolidate3DSurfIntersections (const GmLogCategory &logger) |
| void | buildVisibilityBVH (const GmLogCategory &logger) |
| QVector< QVector< int > > & | getCellEEFaceMap (const GmCellType type) |
| size_t | usedElementMapMemory () const |
| void | initResultAttributes (GmSimulationData *simulation) |
| Q_DISABLE_COPY (GmDiscontinuitySet) | |
| void | DebugCells () |
Private Attributes | |
| QString | _id |
| The discontinuity set id (name) | |
| QString | _description |
| A description of the discontinuity set. | |
| DiscontinuityType | _type |
| The type of the discontinuities geometric data. | |
| GmCellMesh * | _mesh |
| The mesh that this discontinuity set is tied to. | |
| GmSpatialIndex * | _index |
| The optional spatial index used to speedup queries. | |
| bool | _addElements |
| Should we automatically add the discontinuity geometry - cell intersections as elements to the mesh? | |
| bool | _addGhostNodes |
| Should we automatically add the discontinuity geometry as ghost nodes? | |
| bool | _addedInterfElemHaveExtraDofs |
| Should added interface elements for EDGELIST/FACELIST have extra dof nodes? | |
| double | _snapTol |
| The percentual snap tolerance for atracting intersection points to nodes, edges or faces. | |
| double | _repelTol |
| The percentual tolerance for repeling a intersection point from a node. (Used for GmTriSurfaceDiscontinuity) | |
| double | _repelDistance |
| The percentual distance for repeling a intersection point from a node detected by repelTol. | |
| double | _parallelCosThreshold |
| The cosine threshold used to detect parallelism between surfaces. | |
| bool | _noInternalNodes |
| Flag controlling if internal nodes are allowed (false) or not (true) in the intersection segments. | |
| bool | _internalIntersections |
| Flag controlling if internal intersections should be handled or not. | |
| bool | _discardOriginalGeometry |
| Flag controlling if the original geometry should be discarded after intersection handling for memory saving. | |
| bool | _extendGeometry |
| Flag controlling if the original geometry should be expanded before computing intersections. | |
| bool | _intersectionsBuilt |
| Signals if intersections are built, aftewards no data changes are allowed. | |
| bool | _visibilityOnly |
| Flag for discontinuity with only visibility test (no intersections computed) | |
| QVector< GmValueSet * > | _attributes |
| List with the set of defined attribute values. | |
| QVector< GmPropertySet * > | _propertySets |
| List with the associated property sets. | |
| QVector< GmDiscontinuity * > | _data |
| The list with discontinuity data. | |
| QMap< QString, int > | _attributesMap |
| Maps attribute ids to their indices in _attributes. | |
| QMap< QString, int > | _dataMap |
| Maps discontinuity names to their indices in _data. | |
| QMap< int, SegmentCell2DIntersectionList > | _elementPolylineIntersectionsMap |
| The map with per element intersections with polyline discontinuities. | |
| QMap< int, Gm3DSurfaceCellIntersection > | _elementSurfaceIntersectionMap |
| QHash< GmCellType, QVector< QVector< int > > > | _cellEEFaceMap |
| GmBVHVisibility * | _visibilityBVH |
| Acceleration structure for visibility queries. | |
| GmSimulationData * | _simData |
| int | _startNode |
| When elementts are added to mesh, this points to the starting added node. | |
| QMap< size_t, int > | _pointMapId |
| Map used to translate local point to global points list. | |
| QVector< GmVector3 > | _consolidatedPoints |
| List of consolidated points from 'consolidate3DSurfIntersections'. | |
| QVector< Gm3DSurfacePointInfo > | _consolidatedPointsInfo |
Friends | |
| class | GmDiscontinuitySetStateDumpItem |
| Dump related operators. | |
| class | GmLuaDiscontinuitySet |
| QDataStream & | operator<< (QDataStream &stream, const GmDiscontinuitySet &ds) |
| QDataStream & | operator>> (QDataStream &stream, GmDiscontinuitySet &ds) |
Base interface for providing discontinuity geometry information for spatial indices.
Discontinuity type (defining how the disc. geometry is defined)
| GmDiscontinuityAccessor * GmDiscontinuitySet::attributeAccessor | ( | QString | id, |
| int | snum, | ||
| bool | locked, | ||
| Unit | desiredUnit, | ||
| const GmLogCategory & | logger ) const |
Overloads attributeAccessor(QString, Unit, ...) to return an accessor for the requested previous state of a value.
The snum parameter contains the requested state. A value of zero means the current state, 1 the previous one, 2 the one before that and so on. Valid values range from zero to the oldest state for the requested variable. Remember that for a value accessor to support states, the history parameter must be set in its value info object.
The locked parameter controls the behaviour of the accessor once a new state is created for the value. The 'lock' refers to the state number, so if locked is false and a new state is created, the accessor doesn't change and continues to point to the same data. If locked is true, the accessor will be locked to that state number so when a new state is created, the accessor changes the data its looking upon to reflect the new satte. For example, an accessor locked on the state 0 will always point to the current state and one locked to the state 1 will always point to the previous saved value.
See the overloaded function for the remaining parameters.
| GmDiscontinuityAccessor * GmDiscontinuitySet::attributeAccessor | ( | QString | id, |
| Unit | desiredUnit, | ||
| const GmLogCategory & | logger ) const |
Creates an accessor object for the discontinuity attribute named id.
If the id does not refer to a known attribute, returns NULL.
If desiredUnit is a known unit, different from the basic attribute unit, the value will be automatically converted to the desired unit. If no conversion is possible, the function returns NULL. To avoid conversions, just pass Unit() as the desiredUnit.
IMPORTANT: The returned accessor should be deallocated by the caller.
Obs: This is equivalent to calling attributeAccessor(id, 0, true, desiredUnit, logger)
|
private |
Break discontinuity intersection "bars" when they intersect with other discontinuities.
The aux data temporarily saved for each intersection
< The list index for the intersecting segment
< The "natural" coordinate for the intersection
< The cartesian coordinate for the intersection
|
private |
Later on we assume that it is negative!
| void GmDiscontinuitySet::getDiscontinuityGeometry | ( | const GmCell * | e, |
| int | id, | ||
| GmVector & | Xref, | ||
| GmMatrix & | mn ) const |
Get the discontinuity geometric properties.
Get the discontinuity geometric properties Fill the reference point Xref and the orientation vectors, saved in the matrix mn, of the discontinuity that intersects the given cell.
| int GmDiscontinuitySet::getNumberOfDiscontinuities | ( | const GmCell * | c | ) | const |
Returns the number of discontinuities that intersect a given element.
Returns the number of discontinuities that intersect the given cell.
| int GmDiscontinuitySet::getNumberOfDiscontinuityElements | ( | const GmCell * | c | ) | const |
Returns the number of discontinuity elements (bar (2D)/triangle (3D)) that intersect a given element.
Returns the number of discontinuity subelements that intersect a given element. The sub-elements consist in the bars for 2D and triangles for 3D.
| bool GmDiscontinuitySet::intersects | ( | const GmCell * | c, |
| bool | def ) const |
Returns true if this discontinuitySet cross the given cell (completely cross) IMPORTANT: In case the cell is from another mesh returns the default value
| bool GmDiscontinuitySet::loadFromHdf5File | ( | GmHdf5ModelReader * | reader, |
| int | dsIndex, | ||
| const GmLogCategory & | logger ) |
Loads discontinuity geometry information from the given Hdf5 file. The info pointer should correspond to the mesh discontinuity set information read using the given reader and the dsIndex should correspond to the current discontinuity set object.
A 2d or 3d border discontinuity (edge list or face list)
|
static |
Loads a discontinuity set object full definition from a Lua table.
The new object is initialized with the data found in the table. Returns NULL and prints an error message using the supplied logger in case of errors (like an invalid disc. set definition point or boundary).
If type is different from -1, assumes that its value is the DiscontinuityType and DOES NOT LOADS the polyline, boundary or surface data.
This function expects that some basic validation steps have been done elsewhere (currently at the model loading by the DiscontinuitySet Lua function).
| GmDiscontinuityAccessor * GmDiscontinuitySet::propertyAccessor | ( | QString | id, |
| Unit | desiredUnit, | ||
| const GmLogCategory & | logger ) const |
Returns an accessor object for the property named by id.
If id does not reference a known property, returns NULL; Remember that there should be no intersection between property names of the several sets bound to a single discontinuity set, so id specifies a unique property among the several possible property sets.
If desiredUnit is a known unit, different from the basic property unit, the value will be automatically converted to the desired unit. If no conversion is possible, the function returns NULL. To avoid conversions, just pass Unit() as the desiredUnit.
IMPORTANT: The returned accessor should be deallocated by the caller.
| GmValueInfo * GmDiscontinuitySet::propertyInfo | ( | QString | id | ) | const |
Returns the metadata of the property named by id.
If id does not reference a known property, returns NULL; Rememeber that there should be no intersection between property names of the several sets bound to a single discontinuity set, so id specifies a unique property among the several possible property sets.
| int GmDiscontinuitySet::propertySetIndex | ( | QString | id | ) | const |
Returns the index in the list returned by propertySets() of the set that includes the named property.
If the id does not reference a known property, returns -1; Rememeber that there should be no intersection between property names of the several sets bound to a single discontinuity set, so id specifies a unique property among the several possible property sets.
|
inline |
Returns a reference to the list of property sets associated to this set.
The order of the property sets in the list is consistent with results returned from propertySetIndex(), i.e, if a call to propertySetIndex("a") returns 1, the second entry of the list should be the property set that includes the "a" property.
|
inline |
Returns the percentual distance used for repelling intersection points from nodes.
Returns true if internal nodes are not allowed in the intersection segments (except for internal segment intersections)
| size_t GmDiscontinuitySet::usedMemory | ( | ) | const |
Returns an estimative of the memory used by the discontinuity set in bytes.
It returns in general the variable memory that depends on the number of discontinuities ignoring "constant" sizes.
|
private |
List of info for consolidated points from 'consolidate3DSurfIntersections'
|
private |
We need the simulation data to create the temp mesh used for geometry extension As we can only have 8 meshes, we need to create/delete it only when extension is done
1.12.0
